HDPE Prestressed Pipe Flat Round Corrugated Duct Making Machine Concrete Bellows Spiral Tube Former
Prestressed Corrugated Pipe Making Machine for Bridge Prestressed
HDPE Perforated Corrugated Pipe is formed by punching at the groove and covering the needle punched geotechnical around the pipe. According to the internal structure, is classified into Single-wall Perforated Pipe and Double-wall Perforated Pipe.
Since the pipe holes are in the troughs and in long strip shape, effectively overcome the disadvantage that the flat wall perforated pipe is easy to be blocked and affects the drainage effect. Be widely used in drainage fields such as highway, railway subgrade, sea reclamation project, subway project, waste landfill, tunnel, green belt, sports field and slope protection caused by high water content, as well as underground irrigation and drainage system of agriculture and horticulture.
Prestressed Corrugated Pipe Making Machine for Bridge Prestressed
Plastic Cable Protection Spiral Pipe Machine HDPE Spiral Pipe Production Line Machinery
Qingdao cuishi Plastic machinery Co., LTD started in 1999 . The company is focusing on research and development of the continuous production of PE,PVC corrugated pipe production line manufacturing. The line could produce spiral corrugated pipe by HDPE or PVC raw materials.

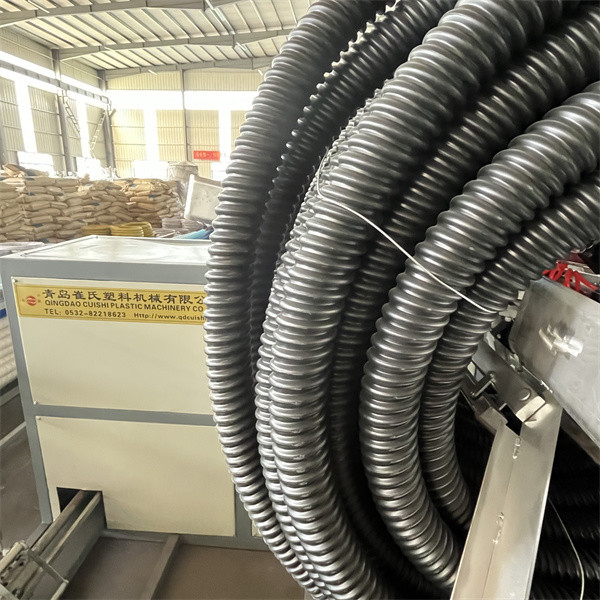

This kind of spiral corrugated pipe is high temperature resistance, corrosion resistance, wear resistance, high strength, widely used in bridge prestressed pipe, underground cable threading sheath, etc.
The machine inclued: SJ - 70/30 SJ80/30,SJ90/30 type single screw extruder, die head mold, forming machine, cutting machine, winder system or stacking machine. Product material is PVC/PE, optimal pipe diameter range for Φ 50-200 mm Φ. Simple operation, good integrity, continuous and stable production, low noise, high efficiency, long service life.
The spiral corrugated pipe product has special spiral physical structure, the pipe material mechanical performance is good, the compressive strength, pipe buried under deformation, inner spiral uniform cable around the cooling efficiency and effectively protect the security of the cable.
1)Vertical and horizontal drainage in the north of various retaining walls; 2)Drainage of highway and railway subgrade, shoulder and soft soil foundation; 3)Drainage of tunnels and underpasses; 4)Drainage of power ash dam and water conservancy dam; 5)Drainage and vegetation protection in the central isolation belt of expressway; 6)Drainage of outdoor sports venues; 7)Horizontal drilling and drainage; 8)Drainage and slope protection in landslide prone land; 9)Roof garden and flower terrace drainage; 10)Hillside water conservation; 11)Underground drainage of land preparation works; 12)Low lying land drainage and saline alkali land reconstruction system.
| Speed frequency regulator | |
| Screw | 1).Screw diameter : 65mm 2).The length and diameter ratio of screw : 30:1 3).Material of screw: 38CrMoALA,under nitrogen treatment 4).The depth of nitrogen layer of screw: 0.4-0.6mm,hardness: HV>740 |
| Barrel | 1).The material of barrel: 38CrMoALA,under nitrogen treatment - The depth of nitrogen layer of barrel:0.5-0.7mm, hardness: HV>940
3).Barrel heating : 4 heating section , Material of heating circle :stainless steel Heating power : 6kw*4 sections 4).Barrel cooling:4 cooling section, Cooling power:0.18kw*4sections (fan blower ) |
| Motor | Driving motor power : 15kw |
| The capacity of extruder | 60-80kg/h |
| Auto material loading machinery | |
| Reduction gearbox | 1).Speed reducer is of hard tooth surface 2).Material of gear is 20CrMoTi under nitrogen, quenching and grinding treatment. 3).Equipped with outer cooling device. The device has strong loading capacity, stable transmission , low noise and high efficiency, etc. |
Qingdao Cuishi Plastic Machinery Co.,Ltd
Sales Manager : Lucy Zhang
Wechat /Whatsapp : +86 15753291269
Address : Xianggang road , Jiaozhou city , Qingdao city
Shandong province , China , Post code :266300
We make the plastic machinery since 1999
